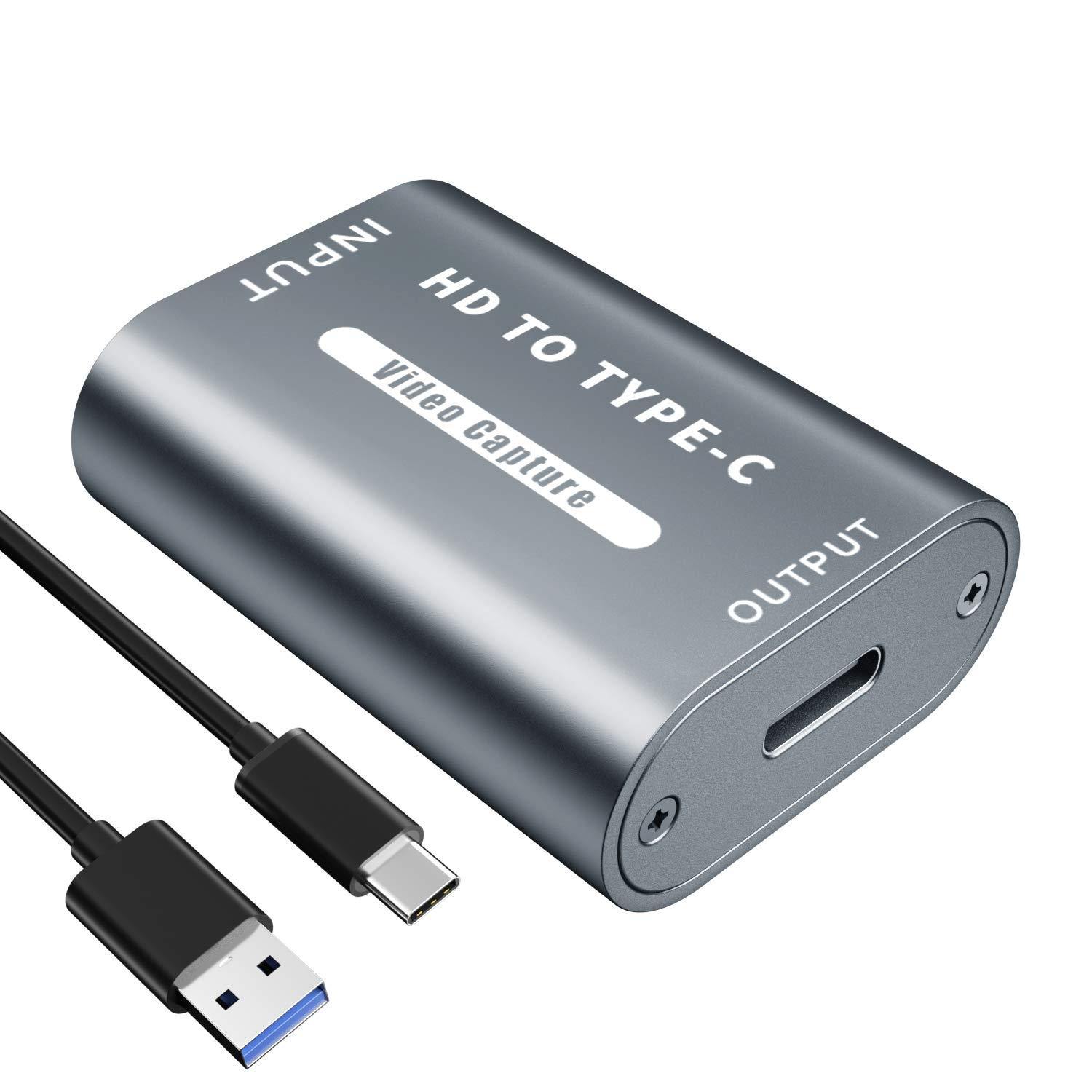

PWAYTEK Capture Card Records Your Best Moments
Installation Steps:
1. Connect the signal equipment you intend to record to the HDMI end of the capture card, such as game screens, live cameras, etc.
2. Connect Type-C on the capture card to your computer.
3. Adjust the video recording software and set the effect you want. The capture card is compatible with VLC, OBS, PotPlayer Amcap, etc.
Example how to set OBS:
(1) Find "Source" and click "+", then click "Video Capture Device".
(2) Select "USB Video", and then select "MJPEG" in "Video Format". Set the resolution within 1920x1080P@30Hz.
(3) Find "Audio Output Mode" and select "Output desktop audio". Select "USB audio device" in "Audio Device".
(4) Click "Start Recording".
Specifcation:
-Video Input max：3840×2160@30Hz
-input format：8/10/12 bit color depth
-Video output mode ：YUV, JPEG
-Video output max：1920×1080@30Hz(30fps)
-Support audio format ：L-PCM
-Max working current：0.4A/5V
Features:
- USB standard Support USB 2.0
- Support Windows, Android and MacOS etc
- Comply with USB video UVC specification
- Comply with USB audio UAC specification
- Support most acquisition software, such as VLC, OBS, Amcap, potplayer, etc

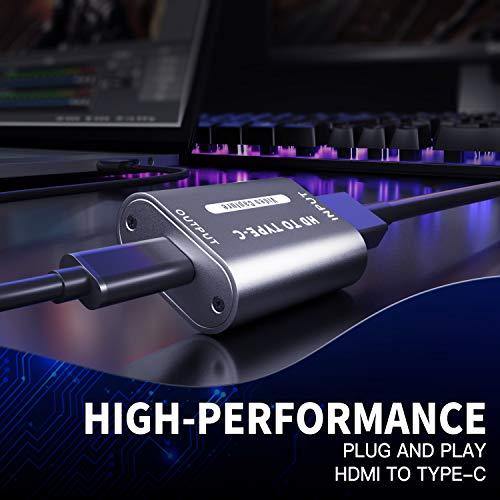

- Plug and play, convenient and fast

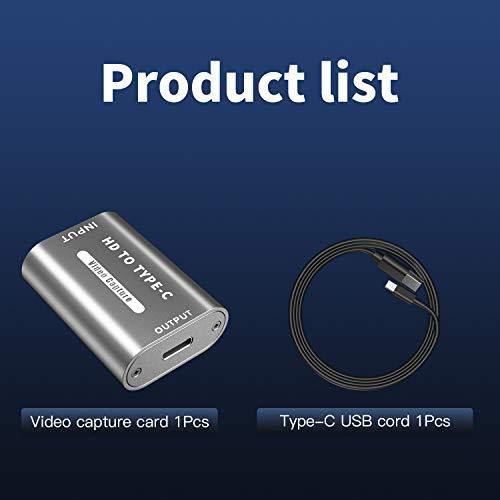

Packing list：
1x capture card
1x type-C to USB2.0 cable ( length 35cm)
About Xbox:
This capture card supports max input 3840*2160@30Hz (4K@30Hz). If your Xbox cannot be set within 30Hz, they will not work.
- by entering your model number.

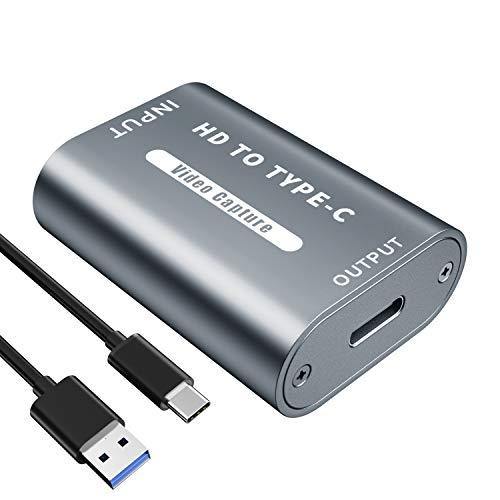

- HDMI to Type-C Capture Card, comes with a USB-C to USB-A cable and make it easier to connect to your device.

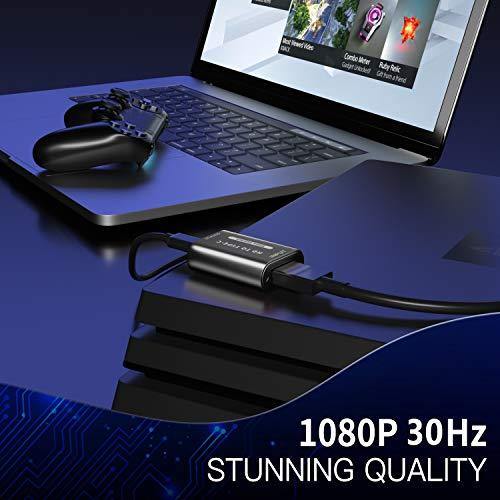

- The input resolution max 4K@30Hz, the output resolution max 1920x1080P 30Hz. HD 1080P 30fps smooth picture quality, record wonderful moments.
- No need to install any driver, small volume, doesn‘t hinder space, exquisite color design makes your capture card unique.

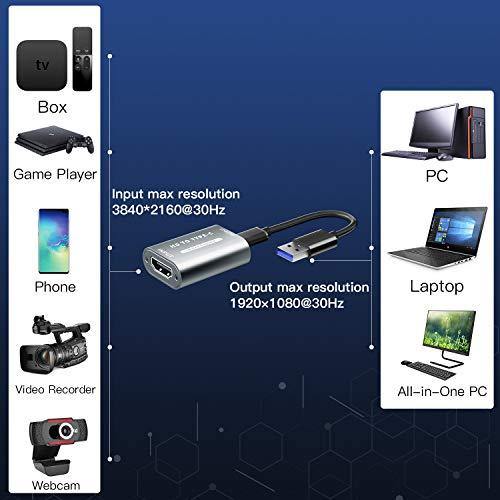

- Support most acquisition software, such as VLC, OBS, Amcap, PotPlayer etc. The input terminal supports signal source input, such as Nintendo Switch, cameras, mobile phones, PS4, Xbox, DVDs, etc.
- This capture device is very suitable for connecting the camera to YouTube live broadcast.It is also suitable for sharing computer screens in meeting rooms, churches, wedding scenes and other places.
